UltraMac
UltraMac
Product Summary
● Punch & Collection in one operation: UltraMac stands for punch & collector module.
● Productivity Up: Increasing 80% of your working load when compare with using punch module only.
● Multiplicity Operation: Punch only, punch & collection, or punch by foot pedal or active sensor to cater for your need.

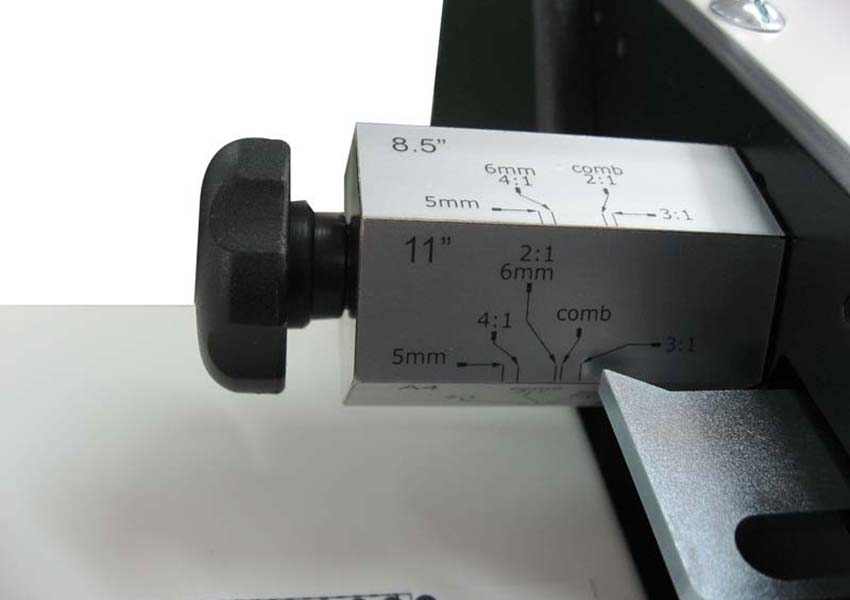

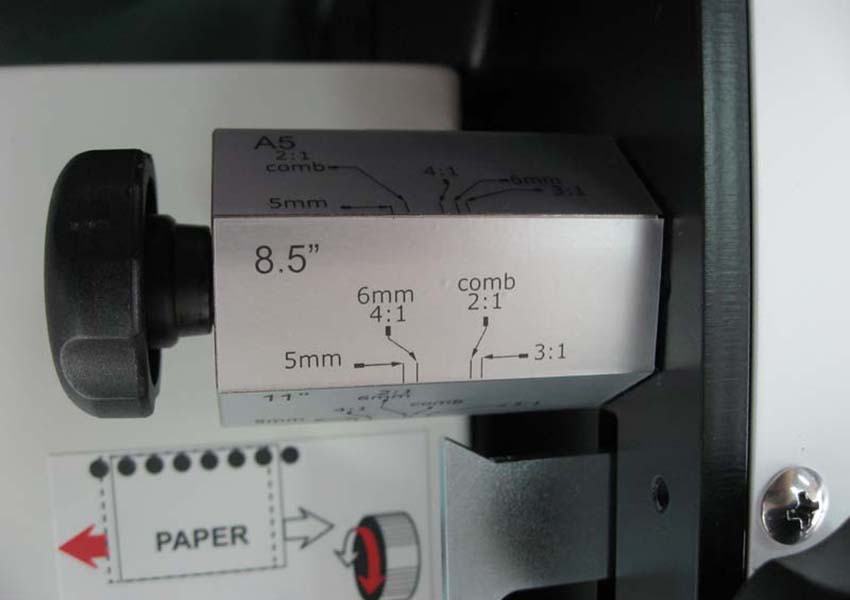

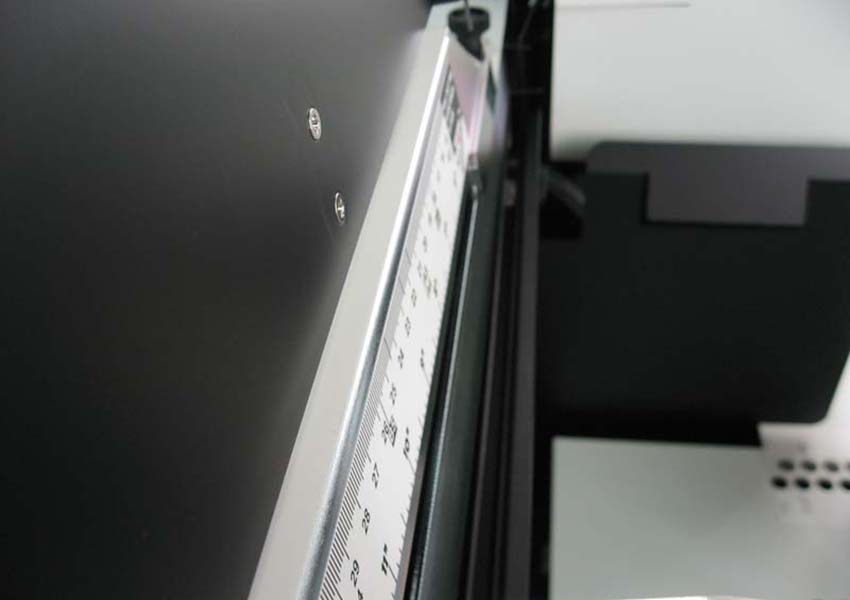

● Smart Side Guide Design: Choice the paper format and easy set-up for accurate adjustment.

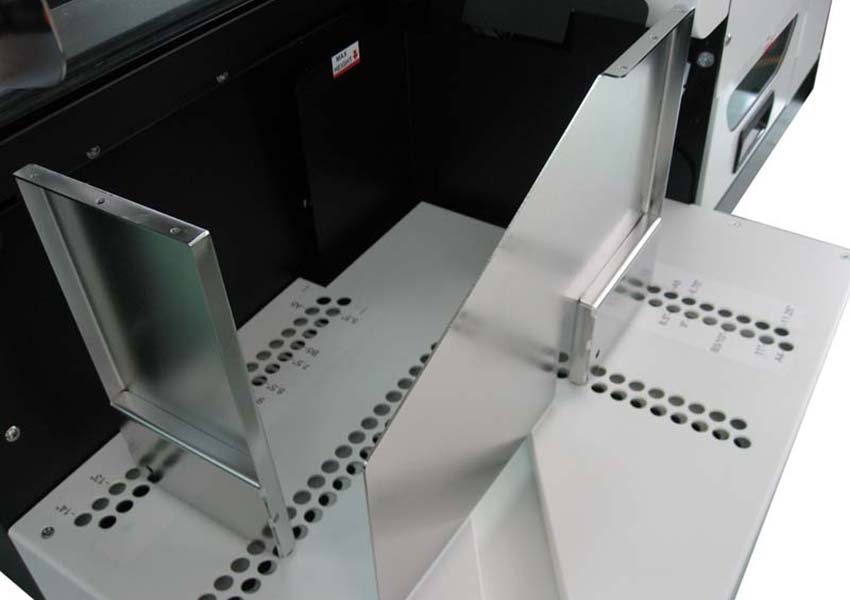

● Regular Collector: Well-uniform punched paper by newest designed of paper jogger in the market.
● Transparency windows on waste drawer.

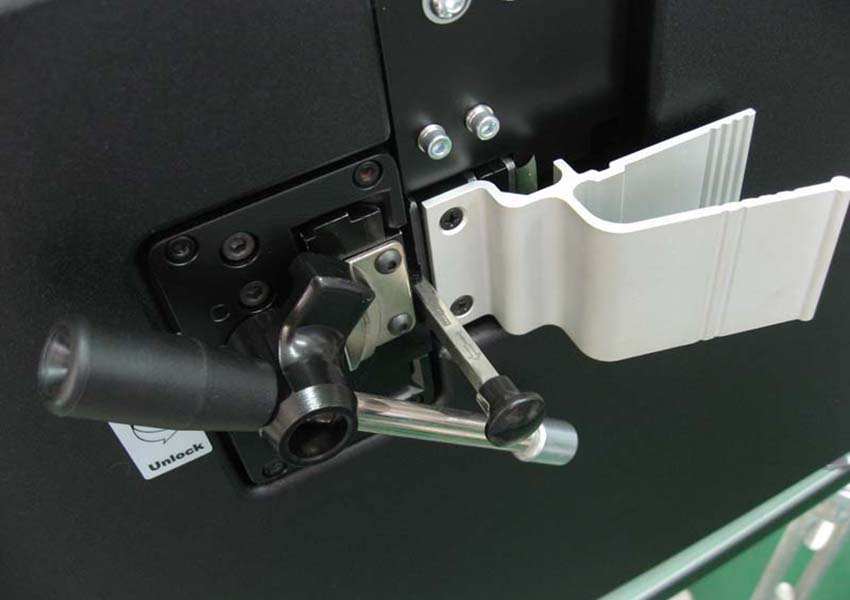

● Full range formats of interchangeable punch dies for option.
● Reverse Function: motor reverse function for paper jam.
|
Model |
Specification |
Patterns |
|
31 |
Pitch 3:1”, Square hole, 4x4mm |
 |
|
21 |
Pitch 2:1”, Rectangle hole, 4x5.5mm |
 |
|
31R |
Pitch 3:1”, Round hole, Dia. 4.5mm |
 |
|
21R |
Pitch 2:1”, Round hole, Dia. 6mm |
 |
|
31M |
Pitch 3:1”, Square hole, 4x4mm with thumb cut for calendar |
 |
|
31MR |
Pitch 3:1”, Round hole, Dia. 4.5mm with thumb cut for calendar |
 |
|
41R |
Pitch 4:1”, Round hole, Dia. 4mm |
 |
|
29V |
Pitch 6.29mm, Oval hole, 4x5mm |
 |
|
6R |
Pitch 6mm, Round hole, Dia. 4mm |
 |
|
6V |
Pitch 6mm, Oval hole, 4x5mm |
 |
|
29R |
Pitch 6.29mm, Round hole, Dia. 4.6mm |
 |
|
24 |
Standard Comb pitch, Rectangle hole by 8x3mm |
 |
|
3R |
Pitch 108mm, Round hole, Dia. 8mm |
 |
|
30R |
Pitch 9.5mm, Round hole, Dia. 5.5mm |
 |
|
51R |
Pitch 5:1”, Round hole, Dia. 3.6mm |
 |
|
Model |
Ultra Mac |
|
Item Code |
UM |
|
Punch Capacity |
Max. 2.5 mm/per punch |
|
Punch Cycle |
90 cycle/min. |
|
Max. Punch Length |
14” |
|
Min. Punch Length |
5.5” |
|
Available Punch Dies |
14 options dies and accept customized order |
|
Machine Dimensions |
960*650*550 mm |
|
Machine Weight |
105.6Kg |
|
Package Dimensions |
1160*660*640 mm |
|
Package Weight |
117Kg |
Comparsion of UltraMac+ and VersaMac (No stack unit)
