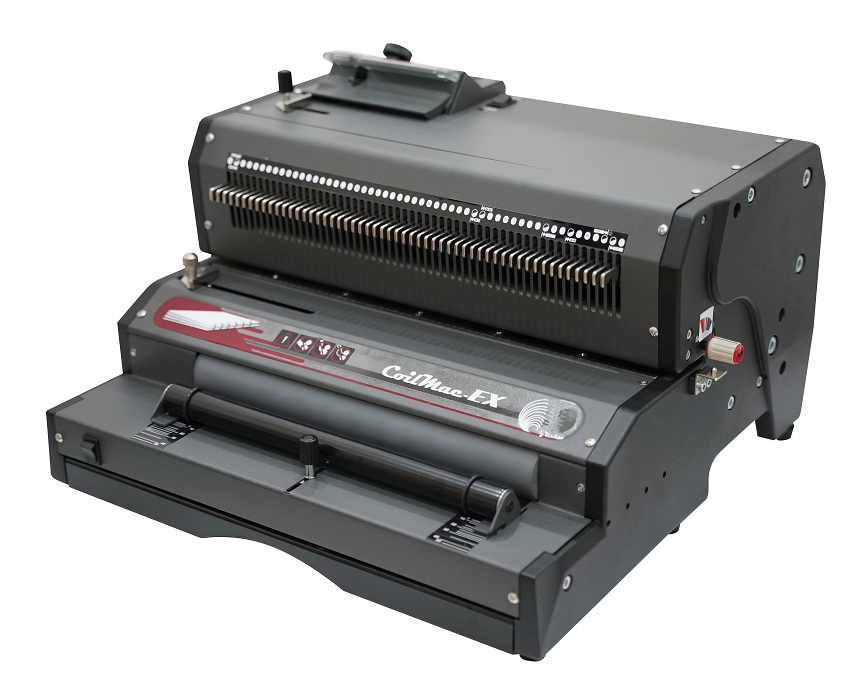

CoilMac-EX Pro

Product Summary

ELECTRIC COIL PUNCH AND BINDING MACHINE - All-in-One

FEATURES:
● Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.
● Adjustable Depth Margin Control: Provide documents with the correct punched depth margin for optimal paper thickness and
wire diameter ratio.
● Side Margin Control: Easy alignment of paper before punching.
● 5 or Fully Disengaging Pins: Quick and easy adjustment of punching length.
● Heavy-Duty All Metal Construction: Guarantee maximum productivity and durability.
● Full Length Durable Electric Coil Inserter Roller: Durable EPDM roller provides high friction and the most efficient inserting.
● Heavy-Duty Punch & Roller Motor: Heavy-duty motor with the thermal overload protection to prevent downtime.
● Manual Anti-Jam Function: For trouble free punching.

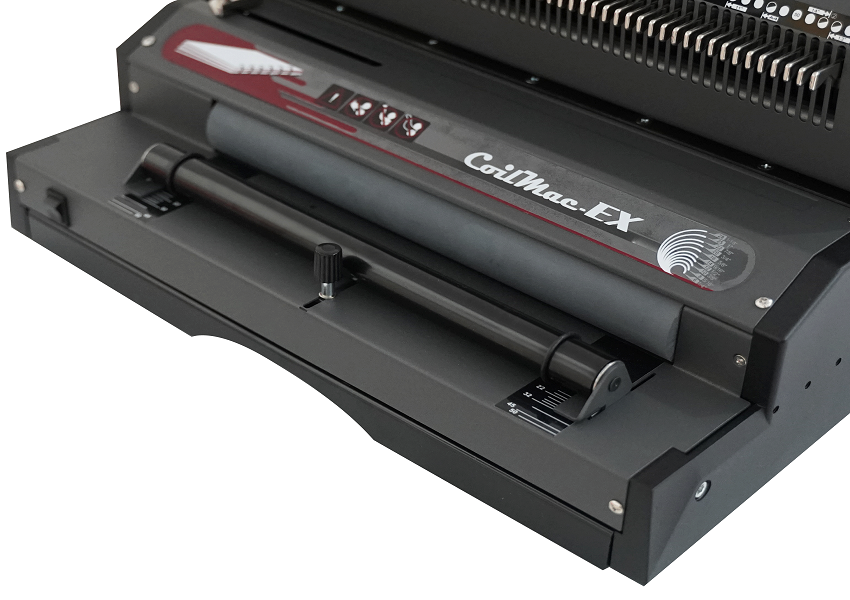

● Adjustable Full Length Durable Electric Coil Inserter: Durable EPDM roller provides high friction and easier insertion of larger diameter coils

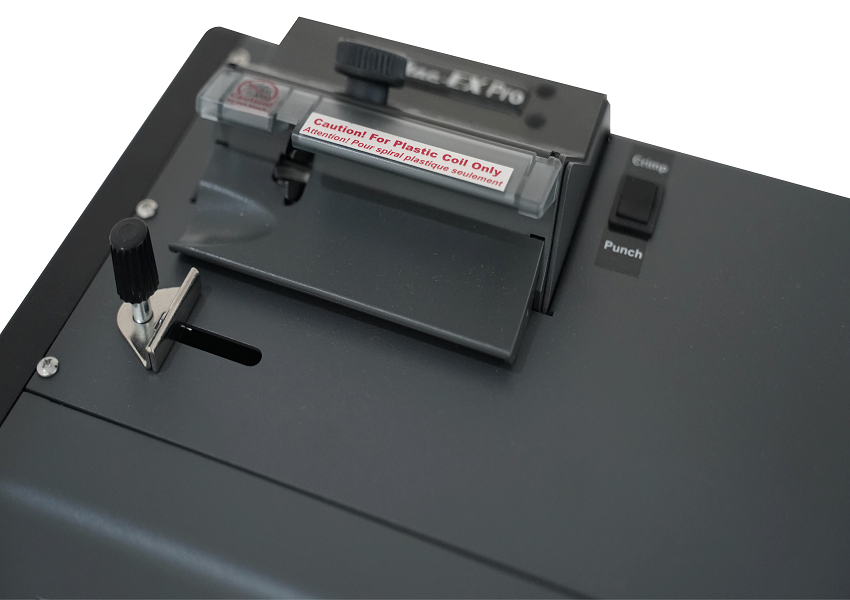

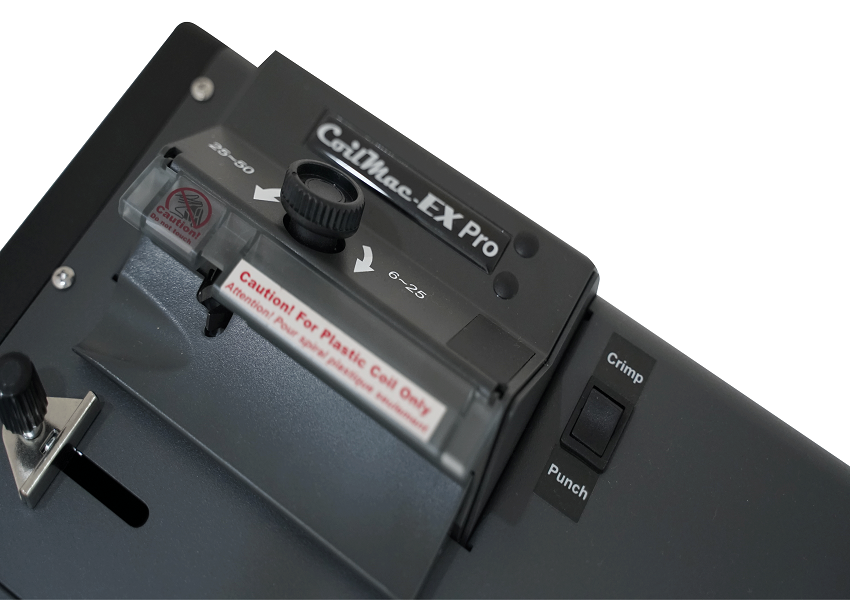

● Adjustable Electric Coil Crimpers: Provide consistent & correct crimper angle for perfect crimping result on all coil sizes. No tools necessary for size change!
● Full Range of Coil Sizes Crimping: Quickly and easily crimp all coils sizes(from 6mm to 50mm)

Available Punching Die Format

Model

Specification

Patterns

6

Pitch 6mm, Round hole, Dia. 4mm



41

Pitch 4:1”, Round hole, Dia. 4mm



41V

Pitch 4:1”, Oval hole, 4x5mm


Product Specifications

Model

CM-EX Pro 6

CM-EX Pro 41

CM-EX Pro 41V

Pitch

6 mm

4:1

4:1

Disengaging Dies

5 or Fully

54

Hole Punch

Round

(ψ4 mm)

Round

(ψ4 mm)

Oval

(4 x 5 mm)

Punching Capacity

28 sheets (20lbs)

Punching Length

14” (356mm)

Binding Mechanism

Fully Length Adjustable Electric Inserter

Binding Capacity

Up to 2"(50mm)

Crimping Operated

Electric Crimper

Machine Dimensions

390x 430 x 270mm

Machine Weight

25.6 kg

Package Dimensions

590 x 525 x 390mm

Package Weight

29kg
